Product Lines

We are leaders in the design, formulation and production of high-performance Thermal Interface Materials, Elastomeric Connectors, Light Guide Products and Custom Silicone Extrusions. We operate a global network manufacturing and distribution centers to deliver you unprecedented product performance and dependability.

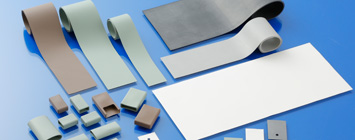

SARCON® Series

SARCON® Series

SARCON® is an advanced silicone rubber with high thermal conductivity and superior flame-retardant. By combining the inherent silicone rubber properties of heat resistance, electrical insulation and long-term aging into one compound, this universally applicable material can be made in an unlimited number of thermal management configurations.

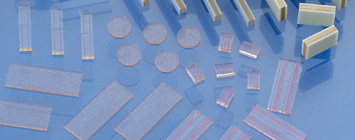

Electronic Connector Series

Electronic Connector Series

ZEBRA® Elastomeric Electronic Connectors are a comprehensive group of high performance interconnect devices with applications throughout the entire field of electronics. With the expansion of micro-electronics and miniaturization of all products, the same high reliability must be maintained.

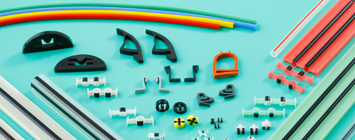

Extrusion Series

Extrusion Series

  • Fusible Tapes
  • Co-extrusions, Gaskets and Seals
  • Silicone Tube
  • SARCON RUBBER TYPE Tube
  • Gasket
  • Packing

and so on

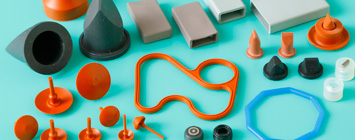

Press Molding Series

Press Molding Series

  • SARCON RUBBER TYPE Case
  • One-shot Mold Type Elastomeric Connector
  • Checkvalve
    available in various shape and design

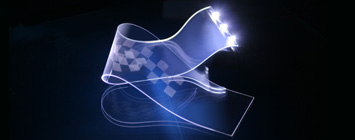

OptiCrysta® Series

OptiCrysta® Series

Light Guide Product Series is a plane emission type of light guide made with high transparent silicone rubber.

  • OptiCrysta® LGS
  • OptiCrysta® LGSP
  • Si-Lens M-Mold 6MCA

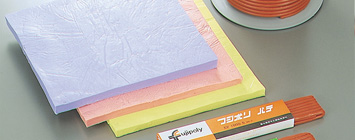

Other Products

Other Products

  • Fujipoly Silicone Putty
  • High Reflectance Silicone Rubber

SARCON Thermal Conductivity List

Thermal Conductivity
W/mK
RUBBER TYPEGAP FILLER TYPEEXTREMELY
COMPRESSIBLE
GAP FILLER TYPE
FORM IN PLACE
GAP FILLER
TYPE
NON-SILICONE TYPE
0.8
0.9 GTR
1.1 QR
1.2 TR
1.3   GR-ae
GR-d
GR-Sd
(1.5W/mK*1)
    NR-c
(1.5W/mK*1)
1.4 GHR GR14A
(1.6W/mK*1)

1.7 HR
2.0       SPG-20A
SPG-20B

2.2 YR-a
2.5   GR25A
(2.8W/mK*1)
PG25A
(2.8W/mK*1)

2.9 GSR
3.0 GAR     SPG-30B
3.9 YR-b
4.5   GR45A
(6W/mK*1)
GR-Pm
(6W/mK*1)

5.0       SPG-50A
6.2   XR-e
(11W/mK*2)
XR-Pe
(11W/mK*2)

6.6     XR-v
(11W/mK*2)

8.0   GR80A
(13W/mK*2)
PG80A
(13W/mK*2)

9.0   XR-j
(14W/mK*2)

11.0   XR-m
(17W/mK*2)
XR-Um
(17W/mK*2)


Measured by using Hot Disk method, refer to Fujipoly Test method "FTM P-1612".
RUBBER TYPE and *1 : Measured by using Hot Wire method, refer to Fujiply Test method "FTM P-1620".
*2 :  Measured by using ASTM D5470 method, refer to Fujiply Test method "FTM P-3030".
